List of Stations Report

Required permissions: Data Download View

The List of Stations data download report displays information about all agent stations you can access, including whether the station is active, the phone number and caller ID of the station, and the creation, last modification, and last login dates and times.

Select Report Option

You need to configure a Date Range, Start/End Time, and Export Format when you run a data download report.

Field Details
Date Range

The default date and time range is from 12:00 AM to 11:59 PM today. When you click the arrows to the left or right of the date range, the range moves up or back 24 hours. When you click the in the date range, you can select one of these options:

  • Today: Outputs data from 12:00 AM today to now. This option is the default.
  • Yesterday: Outputs data from 12:00 AM yesterday to 11:59 PM last night.
  • Last 7 Days: Outputs data from 12:00 AM seven days ago to now.
  • Last 30 Days: Outputs data from 12:00 AM 30 days ago to 12:00 AM today.
  • Previous Week: Outputs data from the last full week, Sunday through Saturday. It pulls data from 12:00 AM last Sunday to 11:59 PM last Saturday.
  • Previous Month: Outputs data from 12:00 AM on the first day of last month to 11:59 PM the last day of last month.
  • Month to Date: Outputs data from 12:00 AM on the first day of this month to now.
  • Specific Date: Opens a date selector and lets you choose a specific day from which to pull data. By default, it pulls data from 12:00 AM that morning to 11:59 PM that night.
  • Date Range: Opens two date selectors that enable you to select a start date and end date for the range. By default, the range pulls data from 12:00 AM on the selected start date to 11:59 PM on the selected end date.

Start/End Time

If you selected Specific Date or Date Range for Date Range, you can use the Start/End Time field to specify the time range you want the data to cover. When you click inside the start or end text box, a drop-down lists times from 12:00 AM to 11:45 PM that you can select. You can also enter a specific time.
Export Format

You can use the Export Format drop-down to select the format you want the report to be in when you download it. You can select one of these options:

  • Comma Separated: A comma-separated list in a CSV file.
  • Tab Delimited File: A tab-separated list in a TXT file.
  • XML: An XML-formatted TXT file.
Include Field Names Select this checkbox if you want the first row of the report to be field names.
Append date to file name (YYYYMMDD) Select this checkbox if you want the current date to appear at the end of the report file name. The format is year, month, then day.

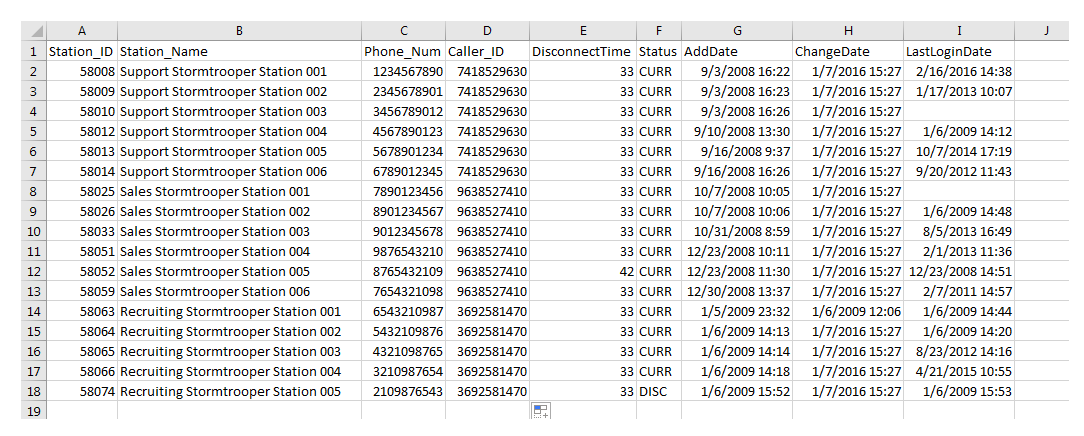

Columns

Station_ID

The unique, system-generated ID of the agent station.
Station_Name

The name of the agent station.
Phone_Num

The phone number associated with the agent station.
Caller_ID

The phone number a contact sees when an agent calls from that station.
DisconnectTime

The number of minutes an agent signed into the station can be idle before being automatically disconnected.
Status

Whether the station is currently active (CURR) or inactive (DISC).
AddDate

The date and time the station was created. It follows the format MM/DD/YYY HH:MM, 24-hour time.

ChangeDate

The date and time the station was last modified. It follows the format MM/DD/YYY HH:MM, 24-hour time.

LastLoginDate

The date and time an agent last logged in to the station. It follows the format MM/DD/YYY HH:MM, 24-hour time.
