Agent Timecard (Expanded) Report

Required permissions: Data Download View

The Agent Time card (Expanded) data download report displays information about agents' login sessions, including the agent name, login date/time, logout date/time, the session duration, and the week of the year during which the session occurred. It is similar to the Agent Timecard Report, but it also contains the agent name, team ID, and week number.

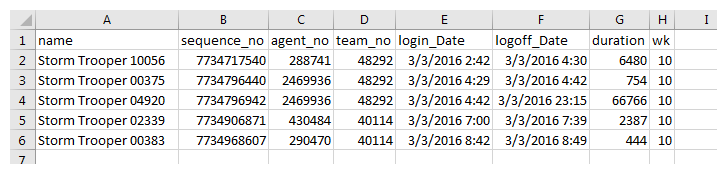

An example of the Agent Timecard (Expanded) data download report output.

Select Report Option

You need to configure a Date Range, Start/End Time, and Export Format when you run a data download report.

Field Details
Date Range

The default date and time range is from 12:00 AM to 11:59 PM today. When you click the arrows to the left or right of the date range, the range moves up or back 24 hours. When you click the in the date range, you can select one of these options:

  • Today: Outputs data from 12:00 AM today to now. This option is the default.
  • Yesterday: Outputs data from 12:00 AM yesterday to 11:59 PM last night.
  • Last 7 Days: Outputs data from 12:00 AM seven days ago to now.
  • Last 30 Days: Outputs data from 12:00 AM 30 days ago to 12:00 AM today.
  • Previous Week: Outputs data from the last full week, Sunday through Saturday. It pulls data from 12:00 AM last Sunday to 11:59 PM last Saturday.
  • Previous Month: Outputs data from 12:00 AM on the first day of last month to 11:59 PM the last day of last month.
  • Month to Date: Outputs data from 12:00 AM on the first day of this month to now.
  • Specific Date: Opens a date selector and lets you choose a specific day from which to pull data. By default, it pulls data from 12:00 AM that morning to 11:59 PM that night.
  • Date Range: Opens two date selectors that enable you to select a start date and end date for the range. By default, the range pulls data from 12:00 AM on the selected start date to 11:59 PM on the selected end date.

Start/End Time

If you selected Specific Date or Date Range for Date Range, you can use the Start/End Time field to specify the time range you want the data to cover. When you click inside the start or end text box, a drop-down lists times from 12:00 AM to 11:45 PM that you can select. You can also enter a specific time.
Export Format

You can use the Export Format drop-down to select the format you want the report to be in when you download it. You can select one of these options:

  • Comma Separated: A comma-separated list in a CSV file.
  • Tab Delimited File: A tab-separated list in a TXT file.
  • XML: An XML-formatted TXT file.
Include Field Names Select this checkbox if you want the first row of the report to be field names.
Append date to file name (YYYYMMDD) Select this checkbox if you want the current date to appear at the end of the report file name. The format is year, month, then day.

Columns

Name

The first and last name of the agent as displayed in the agent's CXone user profile.

Sequence_No

The unique, system-generated ID of the agent login session.
Agent_No

The unique, system-generated ID of the agent.

Team_No

The unique, system-generated ID of the team the agent belongs to.
Login_Date

The date and time the agent logged in to the session. The date follows the format of MM/DD/YYYY, and the time follows the format of HH:MM, 12-hour time. The time stamp is in your time zone.
Logoff_Date

The date and time the agent logged out of the session. The date follows the format of MM/DD/YYYY, and the time follows the format of HH:MM, 24-hour time. The time stamp is in your time zone.
Duration

The duration of the login session in seconds. For example, a duration of 3600 means the agent was logged in for one hour. The system determines the session duration by adding the agent's total time spent on inbound and outbound contacts, in an unavailable stateClosed The availability status of an agent, and in an available state.
wk

The number of the week in the year that the events in the row occurred, numbered 1-52. For example, the first week in January is week 1.
